2026 Isuzu NPR-HD / 14,500 GVWR
$79,400.00 (772) 489-2300
Key Features
- ✔ 350 HP GM 6.6L V8 Gas Engine
- ✔ 8L90 8-Speed Automatic with Lock-Up
- ✔ 16' Knapheide Aluminum Box Truck Body
- ✔ 2,000 lb Capacity TuckUnder
- ✔ 14,500 lb GVWR on 150" Wheelbase
- ✔ Recessed E-Track and Backup Camera
- Stock Number:
- TS 203040
- Model:
- NPR-HD / 14,500 GVWR
- Location:
- The Peterbilt Store - Fort Pierce
Overview
LONG DESCRIPTION
Overview

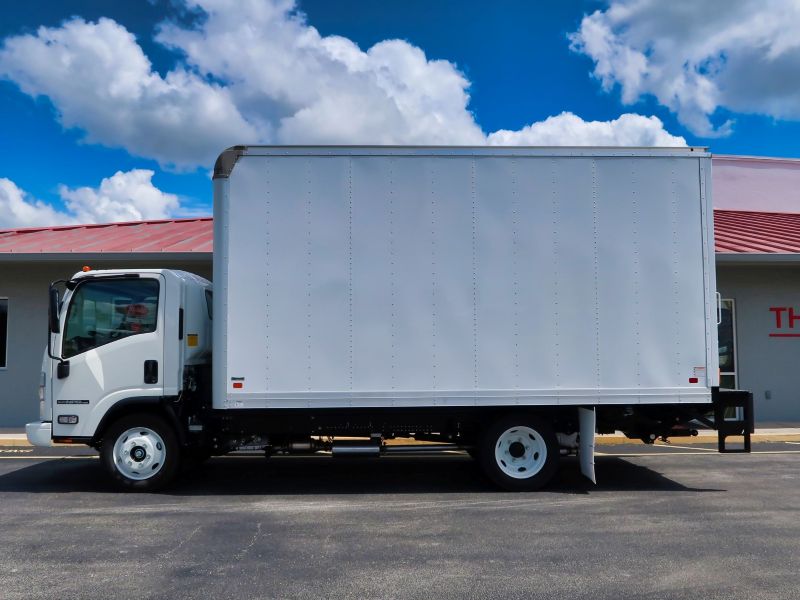

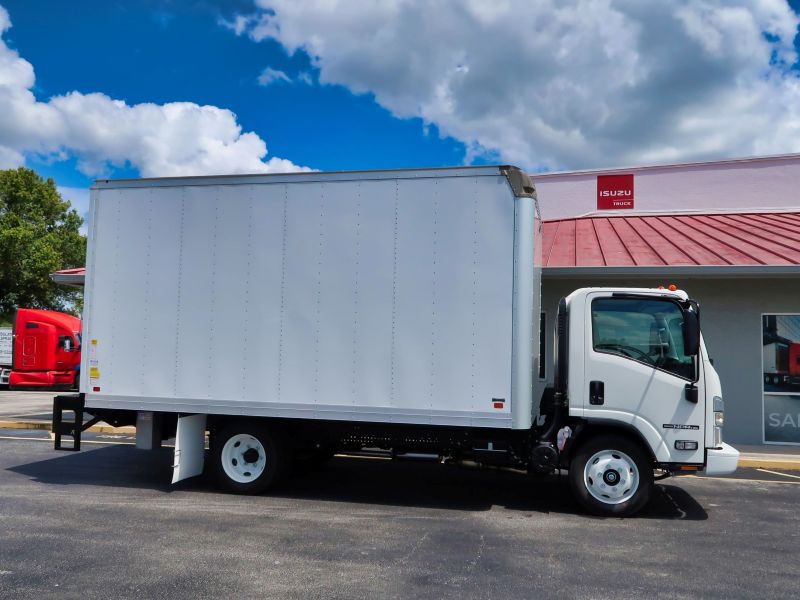

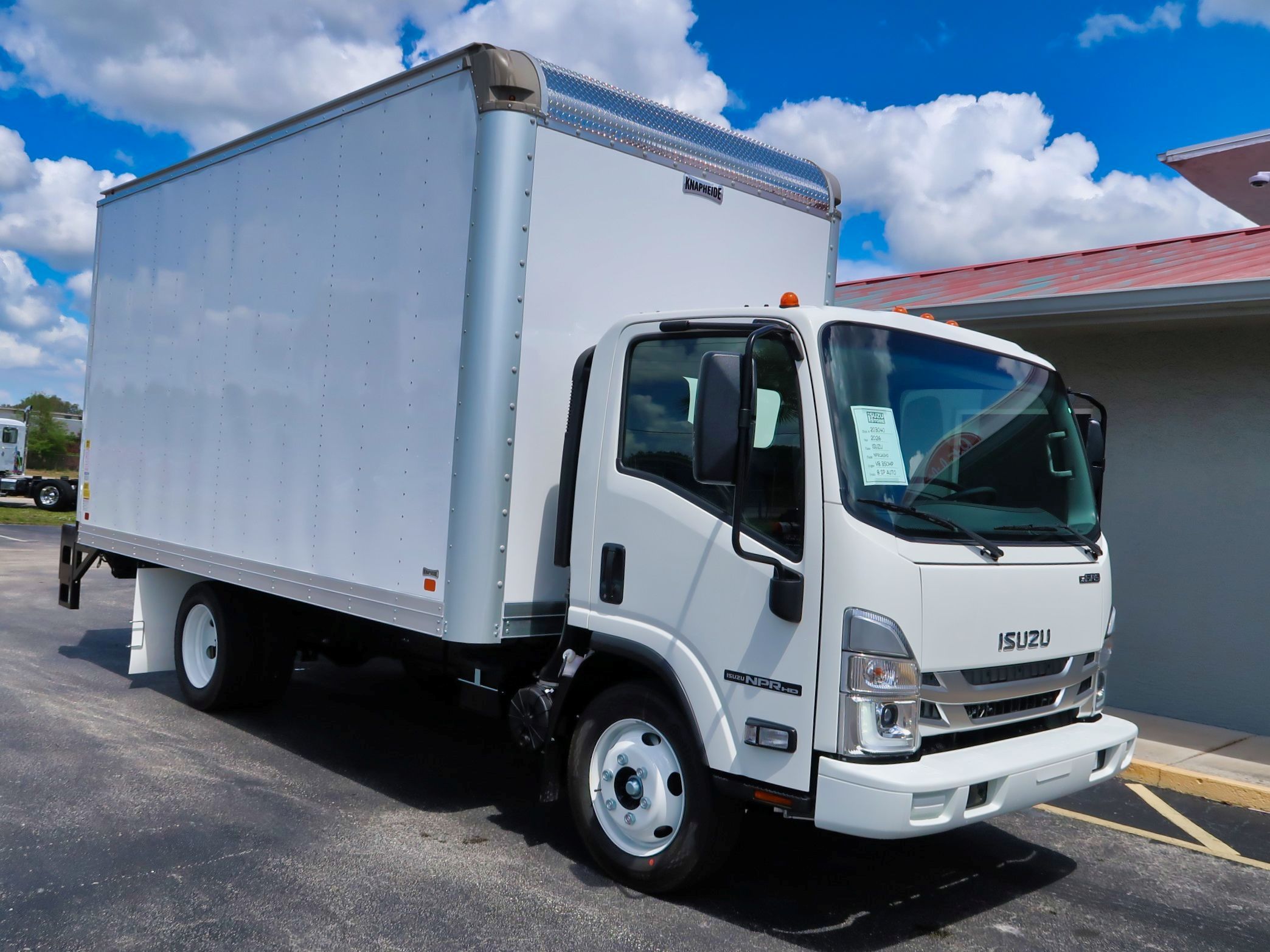

This new 2026 Isuzu NPR HD is a regular-cab, low cab forward truck with a 4x2 drivetrain and dual rear wheels. It’s built as a 16' aluminum box truck by Knapheide and comes ready for local delivery and distribution. The gas engine, automatic transmission, 2,000 lb capacity TuckUnder, recessed E-track and backup camera make it a ready-to-work cargo truck for growing fleets and owner-operators.
Engine & Drivetrain

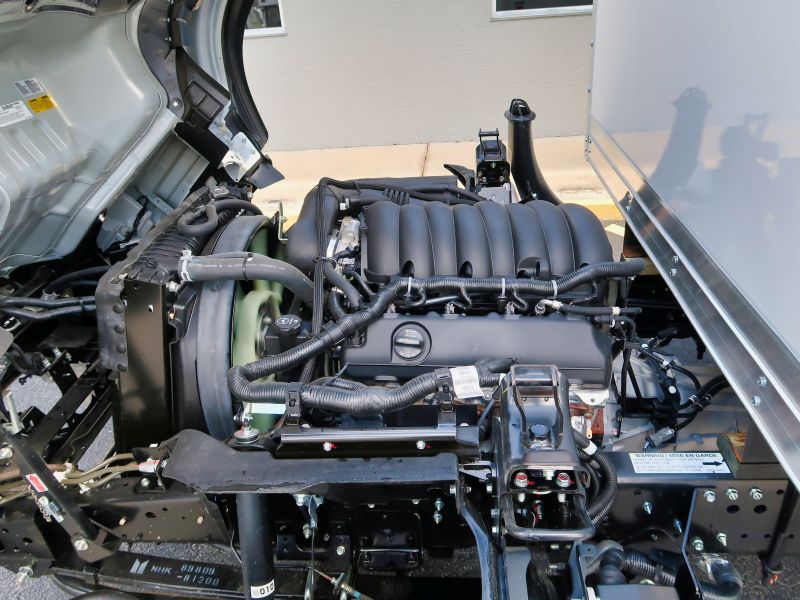

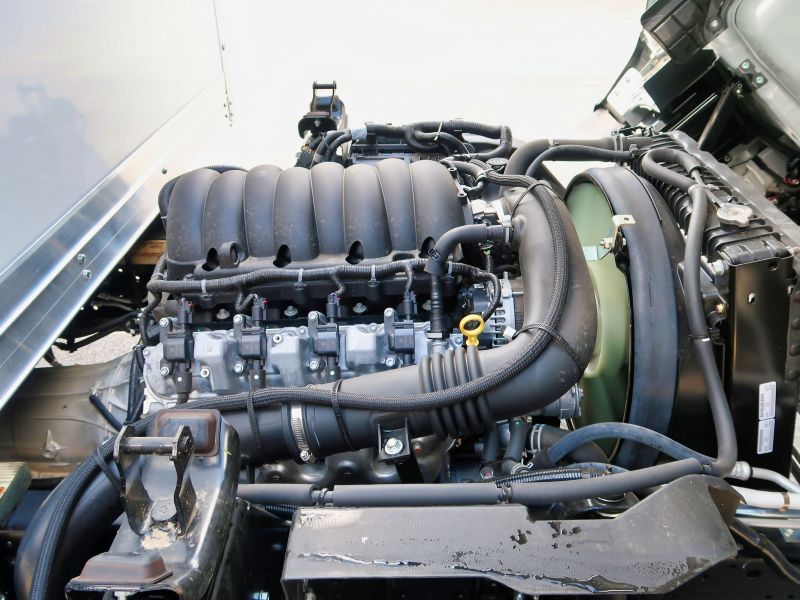

The engine is a GMPT-V8 6.6L gas engine rated at 350 HP. It’s paired with an 8L90 8-speed automatic transmission with lock-up, and the rear axle ratio is 4.10. Other drivetrain equipment includes a single horizontal exhaust, a Donaldson air cleaner, a 170-amp alternator and a 750 CCA 12-volt battery. Fuel is carried in a 38.6-gallon in-frame tank.
Chassis & Axles
The chassis has a 150" (381 cm) wheelbase and a 127.5" cab-to-axle measurement, with a GVWR of 14,500 lbs. The front axle is rated at 6,830 lbs and the rear axle at 14,550 lbs. Braking is a hydraulic four-disc system with ABS (HYD/VA+PA/4DISC/ABS). A 34.75" LCF/NPR frame extension was installed to fit the box body. The chassis ship weight is listed at 5,673 lbs.
Suspension
The front suspension is rated at 6,830 lbs, and the rear suspension is rated at 12,900 lbs (5,851 kg).
Cab & Interior

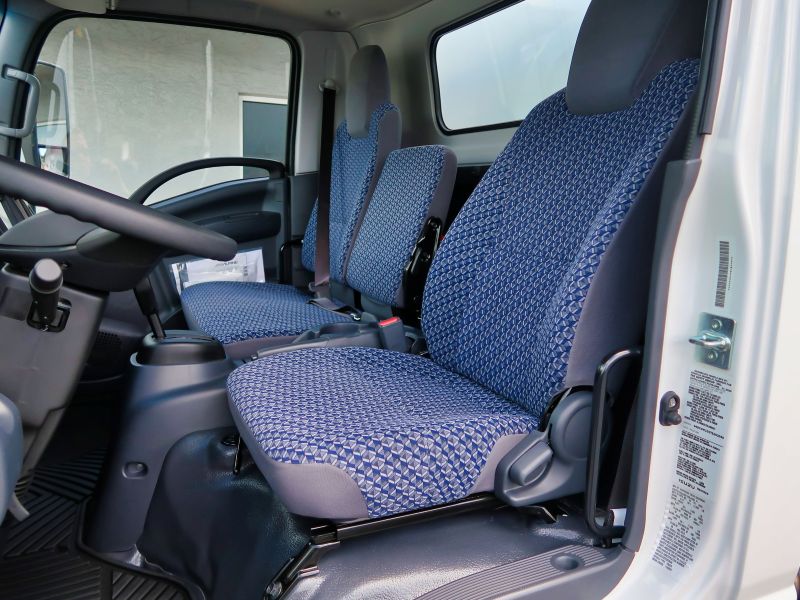

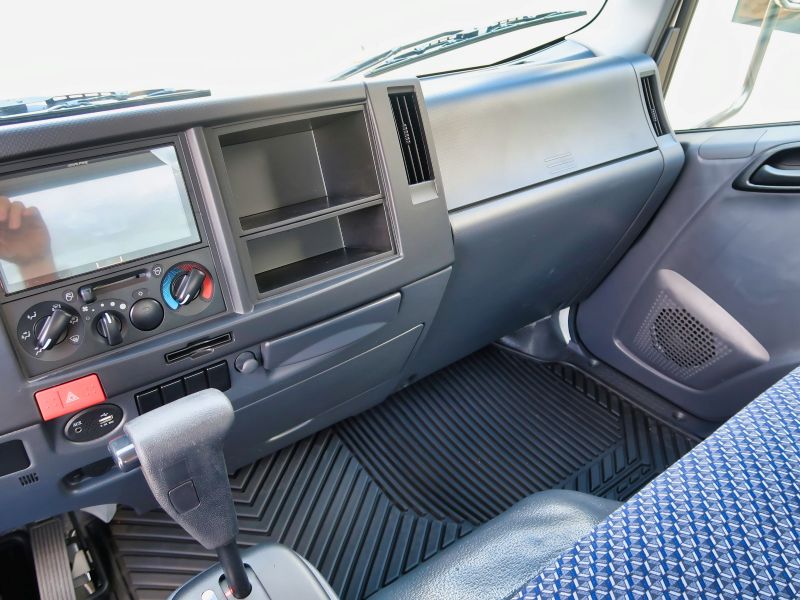

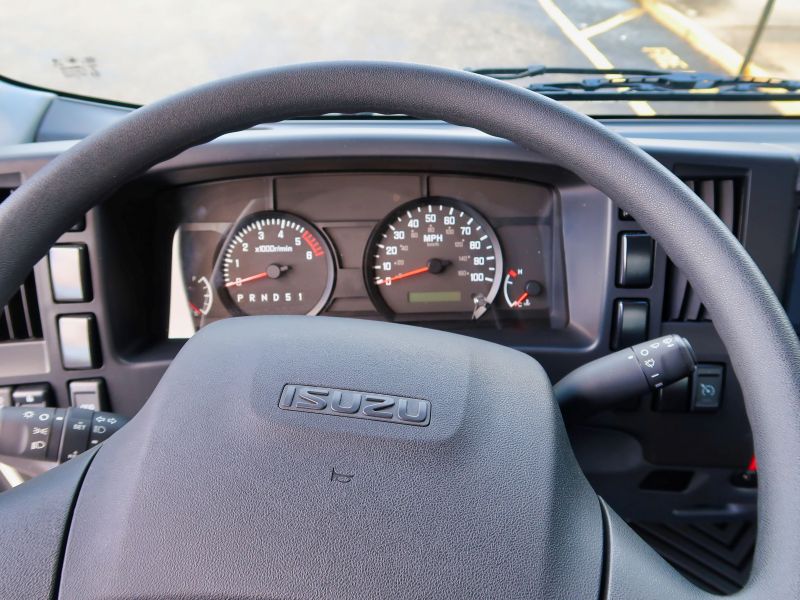

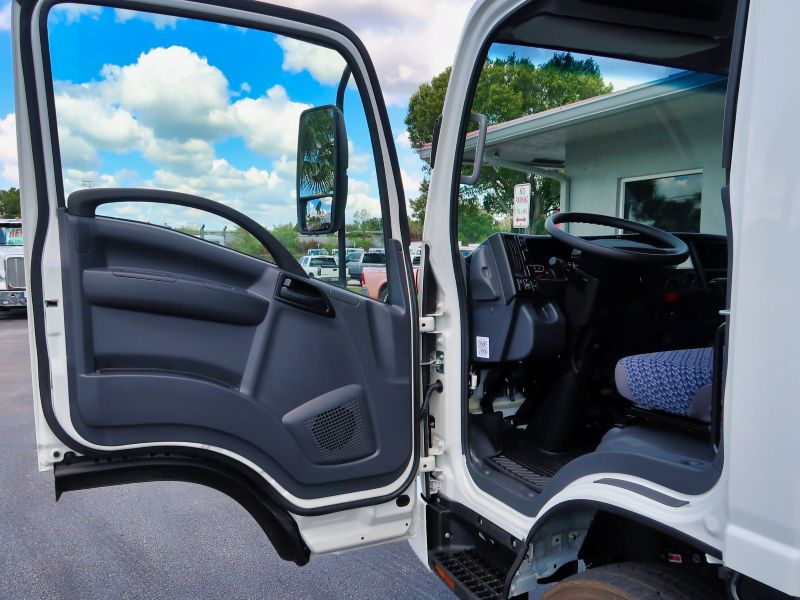

The low cab forward regular cab has three-person seating, air conditioning, and power windows and locks. The audio system has an AM/FM radio with auxiliary input, upgraded with a 7" touchscreen and backup camera. An OEM backup camera is also installed on the box. Safety equipment includes an electrical backup alarm and a fire extinguisher and triangle kit. A rear body dome lamp switch controls the cargo-area lighting.
Body & Equipment

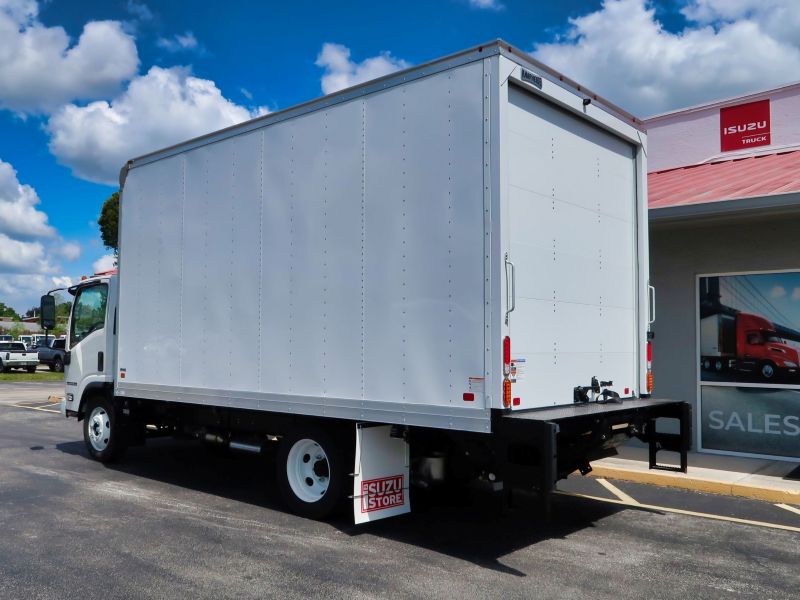

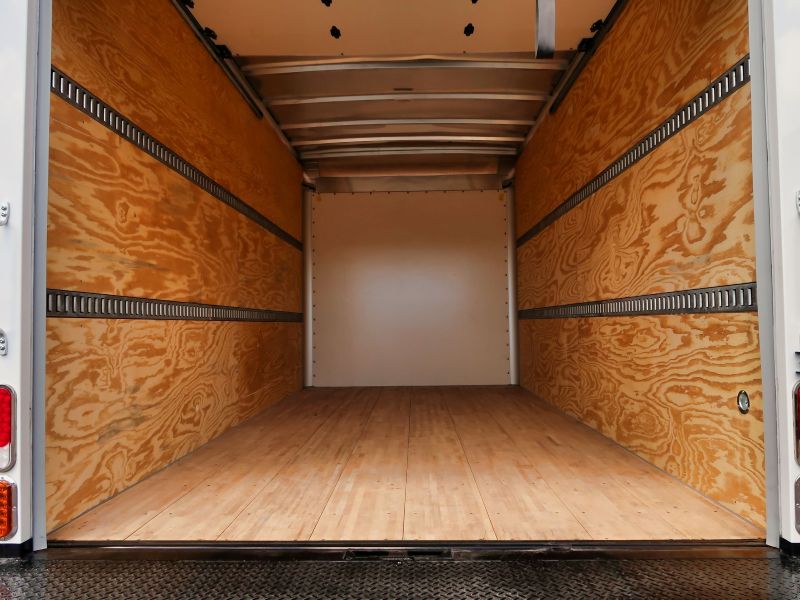

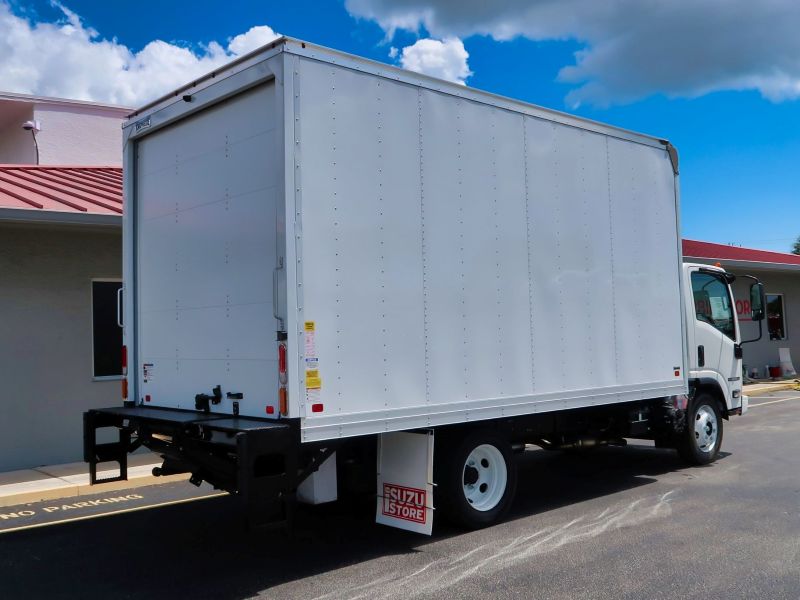

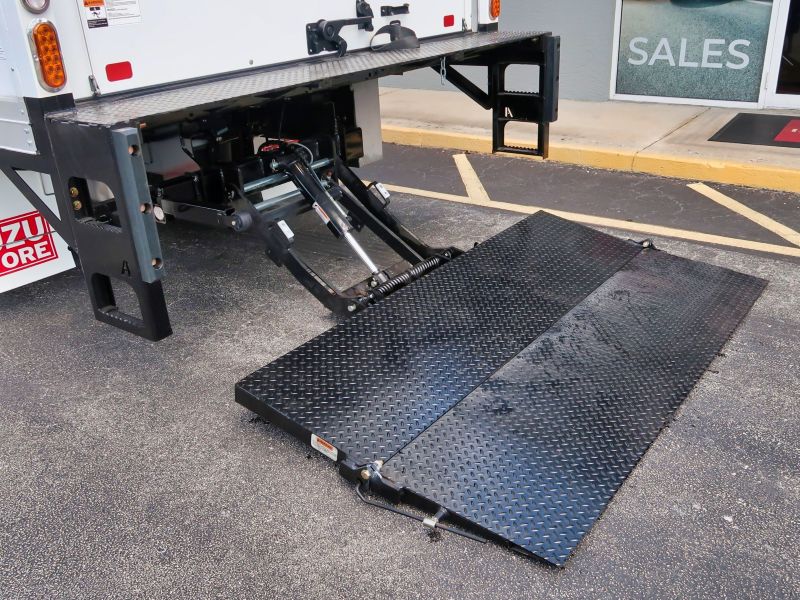

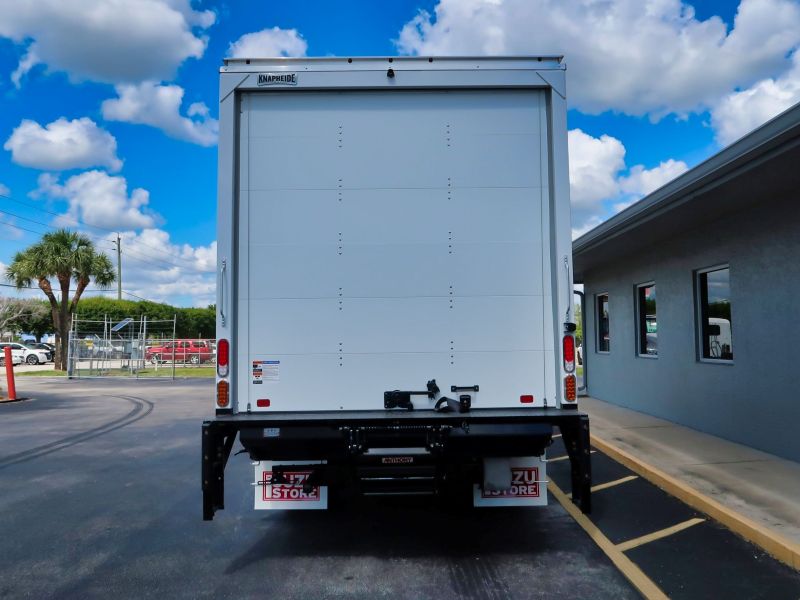

The body is a Knapheide 16' aluminum box truck (KBT-AL169696) measuring 198.11" long by 96" wide by 96" interior height. The floor rests on 3" I-beam crossmembers on 16" centers, with a 12-gauge steel side rail band structure. The standard 2"x8" pine floor was replaced with a laminated hardwood floor kit (KBV/T-1696), and a full plywood interior liner covers the walls. The rear frame clip has a 10-gauge steel threshold and 12-gauge corner posts and headers. The corner posts are reinforced with 12-gauge post filler, and the headers with inner brace supports. The 0.060" aluminum roof has a clamp edge to deter leaks. Rear access is a Trans Global composite roll-up door, and LED dome lights light the cargo area. Each side has two rows of recessed E-track, at 30" and 60". A 2,000 lb capacity TuckUnder, designed for smaller trucks and lower bed heights, is mounted at the rear. Rear equipment also includes 24" wide by 30" high by 3/8" thick black rubber mud flaps, with chrome-plated anti-sail brackets and 90-degree mud flap brackets. The box body weighs 1,779.88 lbs.
Tires & Wheels
The front and rear tires are 225/70R19.5G 14-ply low rolling resistance tires with all-season tread. They’re mounted on 19.5x6 six-hole disc wheels at both ends.
