2026 Peterbilt 548
$225,000.00 (865) 546-9553
Key Features
- ✔ 350 HP PACCAR PX-9 Engine
- ✔ Allison 3000 RDS 6-Speed Automatic
- ✔ 26' Steel Flatbed with 12 Sliding Winches
- ✔ 54,600 lb GVWR Tandem with Diff Lock
- ✔ Meritor Air Disc Brakes Front and Rear
- ✔ Three Tough Bilt Toolboxes
- ✔ 2-Year/250,000-Mile PACCAR PX-9 Engine Warranty
- Stock Number:
- TM 798147
- Model:
- 548
- Location:
- The Peterbilt Store - Knoxville
Overview
Overview

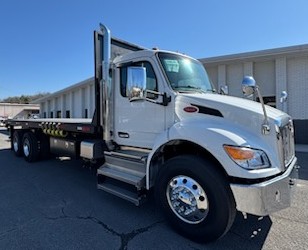

This 2026 Peterbilt Model 548 medium duty day cab is set up as a 26' steel flatbed truck for city delivery work. It has a 274" wheelbase, a 206.5" cab-to-axle, and a 54,600 lb GVWR. The tandem-axle chassis has a 350 HP PACCAR PX-9, an Allison automatic transmission and air disc brakes on all axles. The Peterbilt Aero 107" BBC SMC hood is finished in white, with white cab, fenders and roof and a black frame.
Engine & Drivetrain

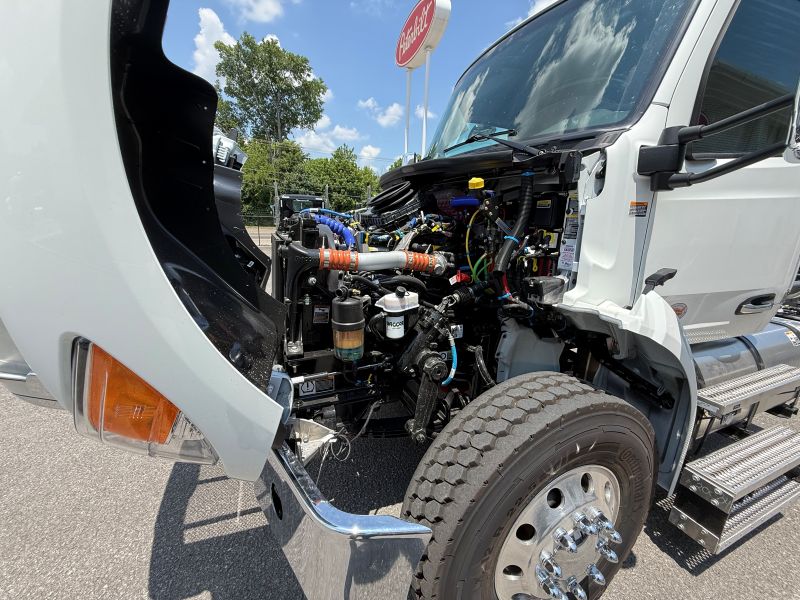

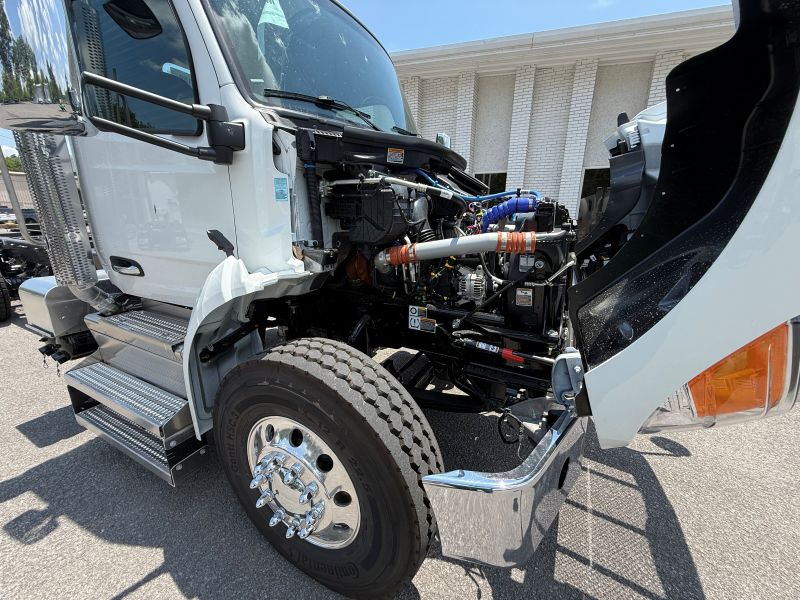

The PACCAR PX-9 is rated at 350 HP at 2,000 RPM and 1,050 lb-ft of torque at 1,200 RPM, governed at 2,200 RPM, and is built to 2024 emissions. The powertrain is tuned for balance in service with frequent stops and starts, with a typical operating speed of 65 MPH. Maximum cruise speed and maximum accelerator pedal speed are both set at 68 MPH. Engine equipment includes a VGT exhaust brake, engine protection shutdown, a Horton on/off fan clutch, a high-efficiency cooling system, an 18.7 CFM air compressor, and an engine-mounted air cleaner with an air restriction indicator. It also has a PACCAR fuel/water separator with a 12V fuel filter heater and a 110–120V immersion block heater. The electrical system has a PACCAR 160-amp brushed alternator, a PACCAR 12V starter, two PACCAR Premium 12V batteries rated at 2,000 CCA, and a low voltage disconnect system. Power goes through an Allison 3000 RDS-P Gen 6 Rugged Duty Series transmission. It’s set up in a 6-speed close-ratio configuration with a TC-421 torque converter, neutral at stop and a dash-mounted push-button shifter. The transmission has left-hand PTO provisions for a Chelsea PTO, a park brake interlock, a dash-mounted electric-over-hydraulic PTO control, and a maximum PTO speed of 1,400 RPM. The 1710 HD driveline uses two midship bearings and a 1710 interaxle driveline. Exhaust is a single right-hand under-cab DPF/SCR module with a 36", 5" diameter chrome standpipe and a curved tip.
Chassis & Axles
The frame uses 10-3/4" steel rails, 3/8" thick, with a full steel inner liner. It has a heavy-duty 5-piece crossmember behind the cab, aluminum frame rail crossmembers, and a square end of frame for the body builder’s crossmember. Up front is a Meritor MFS+14F 14,600 lb wide-track axle with a 3.5" drop and Sheppard SD110 power steering. The rear tandem is a Meritor MT40-14X rated at 40,000 lbs, with a 5.29 ratio, heavy-wall drive axles, synthetic axle lubricant and a tandem differential lock with speed interlock. All axles have Meritor EX+ LS air disc brakes, PHP10 iron Preset+ hubs and severe-service disc brake rotors. A 6S6M anti-lock braking system and a Bendix AD-HF heated air dryer with a coalescing filter complete the setup. The steel air tanks are painted and have pull cords. Fuel is carried in a 100-gallon D-shaped aluminum tank under the cab on the left side, which has a non-slip step. The large DEF tank is mounted on the left side behind the cab, with a polished stainless cover. The front bumper is tapered chrome steel with two tow points and built-in daytime running lights.
Suspension
The front axle rides on taper leaf springs with shocks rated at 14,600 lbs, with greasable spring pins and 80 mm spring spacer blocks. The rear suspension is a Hendrickson HMX EX 400 HAULMAAX rated at 40,000 lbs, with a 54" axle spacing and a 60K creep rating.
Cab & Interior

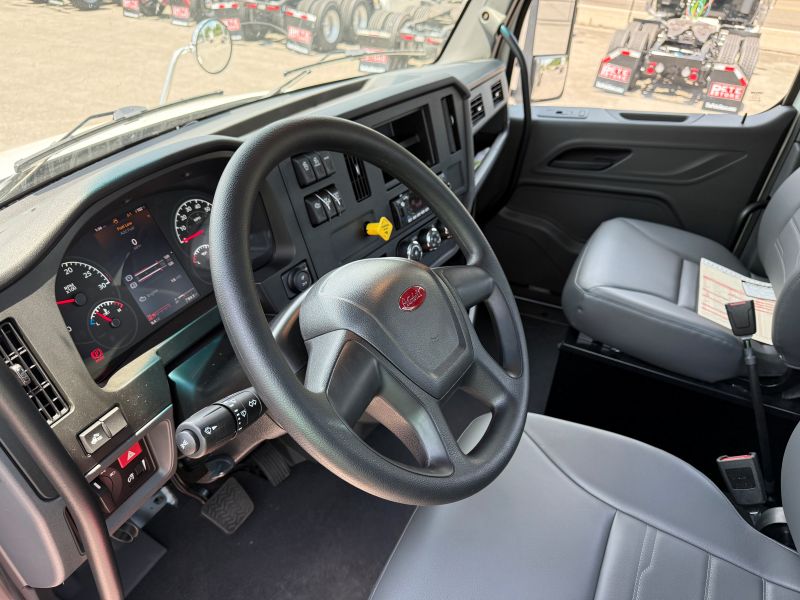

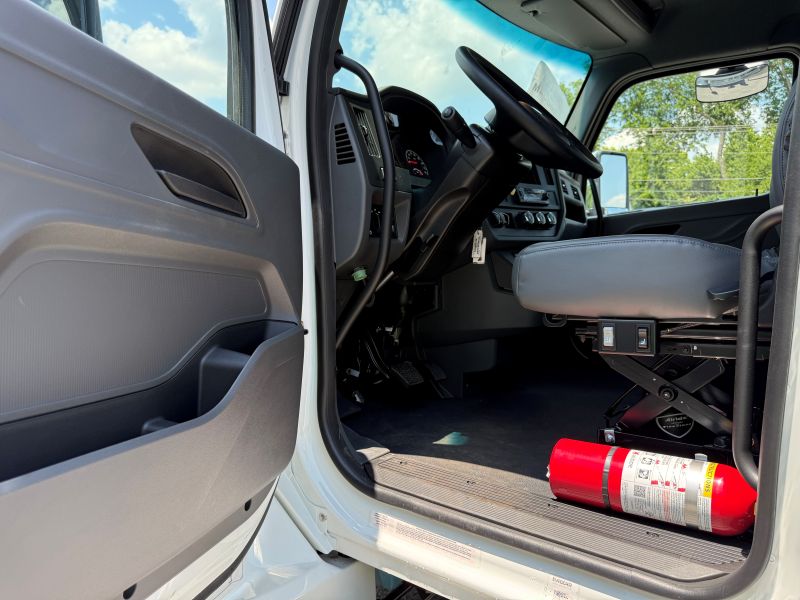

The day cab has a charcoal gray Probilt interior with a curved roof, a thermal insulation package and cab air suspension. The driver gets a Sears high-back air ride vinyl seat with armrests on both sides. The passenger gets a Sears high-back non-air-ride vinyl seat with a toolbox underneath. Standard features include a tilt/telescope steering column with a Peterbilt logo wheel, power door locks and windows, a combination fresh air heater and air conditioner, and electric intermittent wipers. The 7" digital cluster displays transmission oil temperature, brake application air pressure, engine and PTO hour meters, turbo boost and engine percent torque, alongside an MPH-over-KPH speedometer. For entertainment, there’s a ConcertClass AM/FM/WB radio with 3.5mm aux, Bluetooth phone and audio, a USB port and two speakers. The truck also has global telematics hardware with a 5-year SmartLINQ RD subscription. Visibility comes from motorized, heated Peterbilt Aero mirrors with integrated convex glass, bright round hood mirrors and a look-down mirror over the passenger door. Other features include a one-piece curved windshield, a fixed one-piece rear window and a textured NFPA-compliant exterior grab handle. Inside are a deep rear wall map pocket, an extra dash switch, a fire extinguisher, a triangle reflector kit and a 107 dB backup alarm. Composite fender-mounted headlights have integral DRL, park, turn and side marker lights, and there are five aero LED marker lights.
Body & Equipment

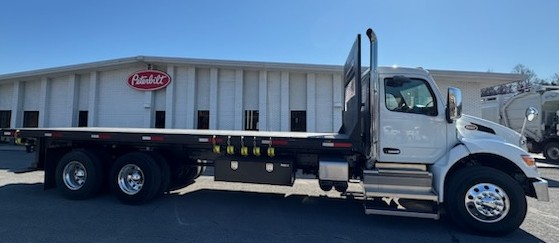

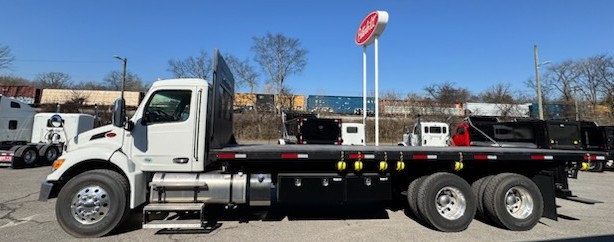

The 26' steel flatbed body from Quality Machine & Welding Co. is built on a TS 6x4x3/8 tubing main frame. The deck is 3/16 checker plate with continuous welds, held by eight heavy-duty frame mounts and finished in black Pittsburgh Industrial paint. The bulkhead has a 2" square 3/16 tubing frame with a 9" expanded metal window and a 10-gauge back plate. Securement includes 12 sliding winches with chain hooks and 12 4" straps. It also has continuous sliding track on both sides, eight center pop-ups, and a strap tie-down bar with a storage pocket. Storage comes from two 48" Tough Bilt toolboxes on the left and one 60" Tough Bilt toolbox on the right. For access, there’s a driver grab bar, a passenger side grab rail and a driver side pull-down bed step. Side rails are 3/8 x 4 flat bar with offsets. At the rear, the body has a heavy-duty bumper and an adjustable heavy-duty Moffett carrier with mounts. The lighting package includes a rear-facing light bar and four 4" backup lights. It also has four red 6x9 oval running lights, three rear running lights, two orange running lights, two red rear bed running lights and a license plate light. A side-mounted 7-way power plug, two mudflaps with hangers and full wiring finish the body. On the chassis side, there’s a 7-way harness at the end of the frame, body connections 5' behind the cab, a Truck-Lite junction box, and a factory load light with a switch and 10' wire coil.
Tires & Wheels
Steer tires are 16-ply 12R22.5 HSC3 with TPMS sensors. The eight drive tires are 14-ply 11R22.5 HDR2+. All positions use high-polish Alcoa ULA187 22.5x8.25 aluminum wheels.
Warranty & Protection
This new Peterbilt has Peterbilt Class 7 Standard Coverage for 1 year/unlimited miles. The PACCAR PX-9 engine has standard coverage for 2 years/250,000 miles (402,336 km)/6,250 hours. The engine also has a 5-year/100,000-mile EPA emissions warranty.
