2025 Peterbilt 567
$265,000.00 (645) 202-0400
Key Features
- ✔ 455 HP PACCAR MX-13 Engine
- ✔ Allison 4500 RDS-P 6-Speed Automatic
- ✔ PacMac 60K Roll-Off with Integrated Arm Tarper
- ✔ 66,000 lb GVWR with 20,000 lb Front Axle
- ✔ Meritor RT46-160 Rears on Hendrickson HMX EX 460
- ✔ 49-Degree Tilt with In-Cab Hoist Controls
- ✔ 2-Year/250,000-Mile PACCAR MX Engine Warranty
- Stock Number:
- SD 716041
- Model:
- 567
- Location:
- The Peterbilt Store – Miami (Medley)
Overview
Overview

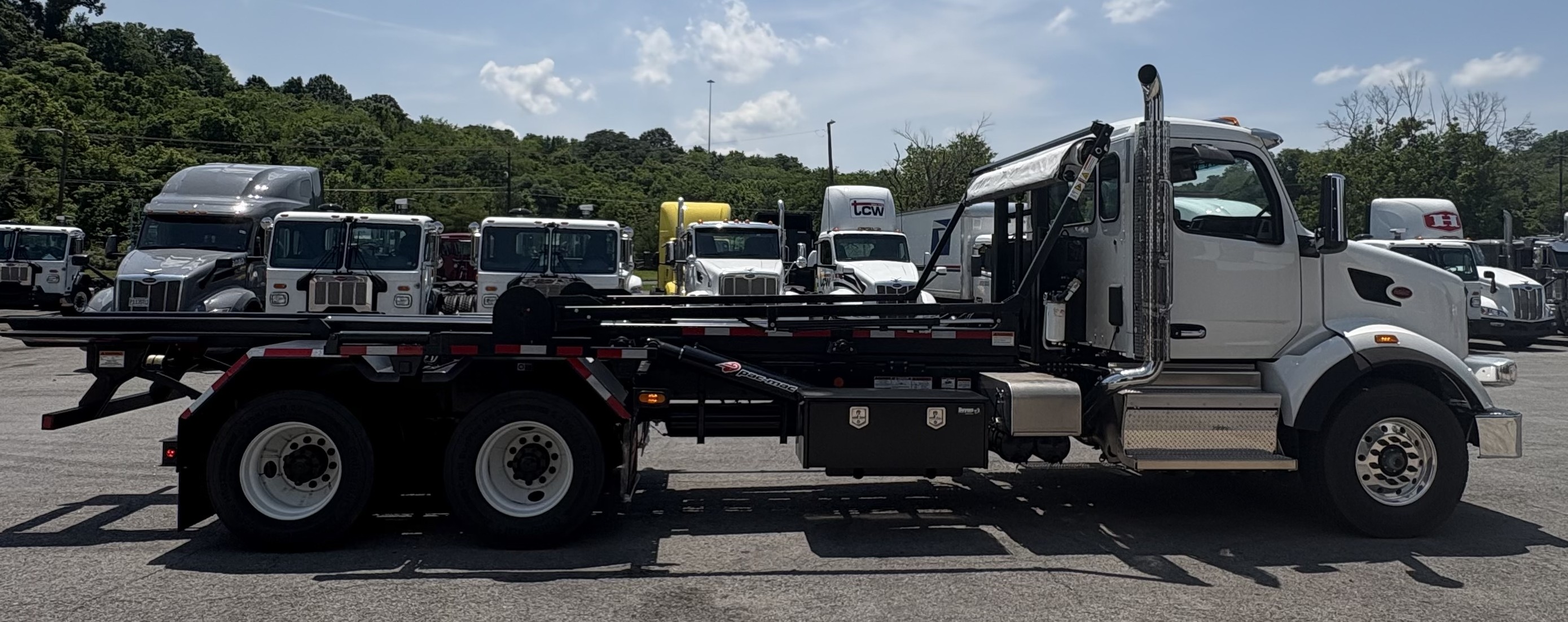

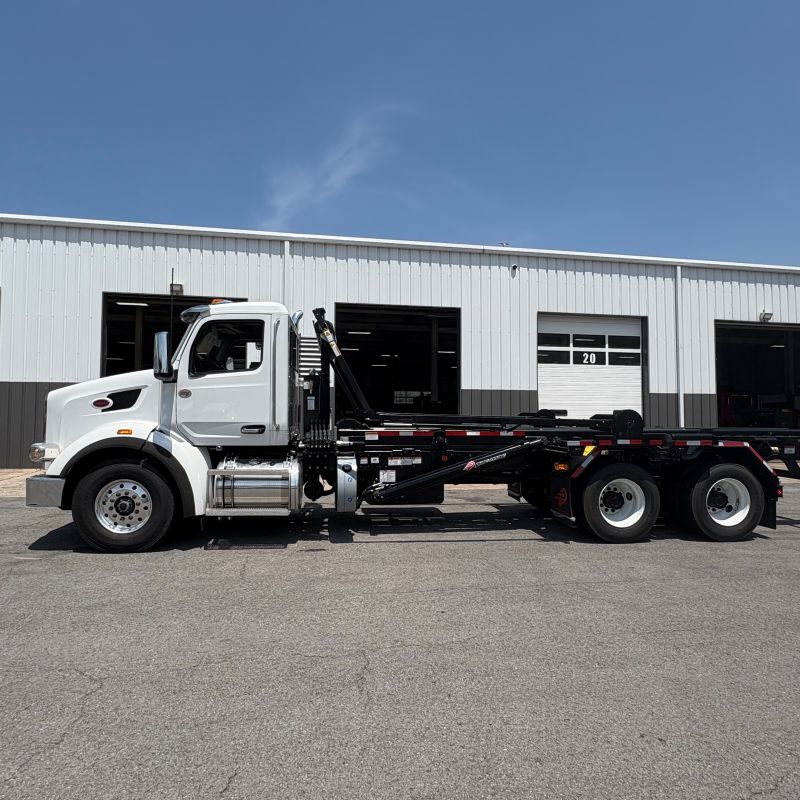

This new 2025 Peterbilt Model 567 Conventional is a day cab roll-off truck spec’d for refuse, scrap and recycling work in refuse/on-highway service. It has a PacMac 60K roll-off body on a 254-inch wheelbase, and the chassis was configured for a 264-inch roll-off body. Power comes from a PACCAR MX-13 paired with an Allison 4500 RDS-P automatic. The truck rides on a 20,000 lb front axle and a 46,000 lb Meritor tandem, for a 66,000 lb GVWR.
Engine & Drivetrain

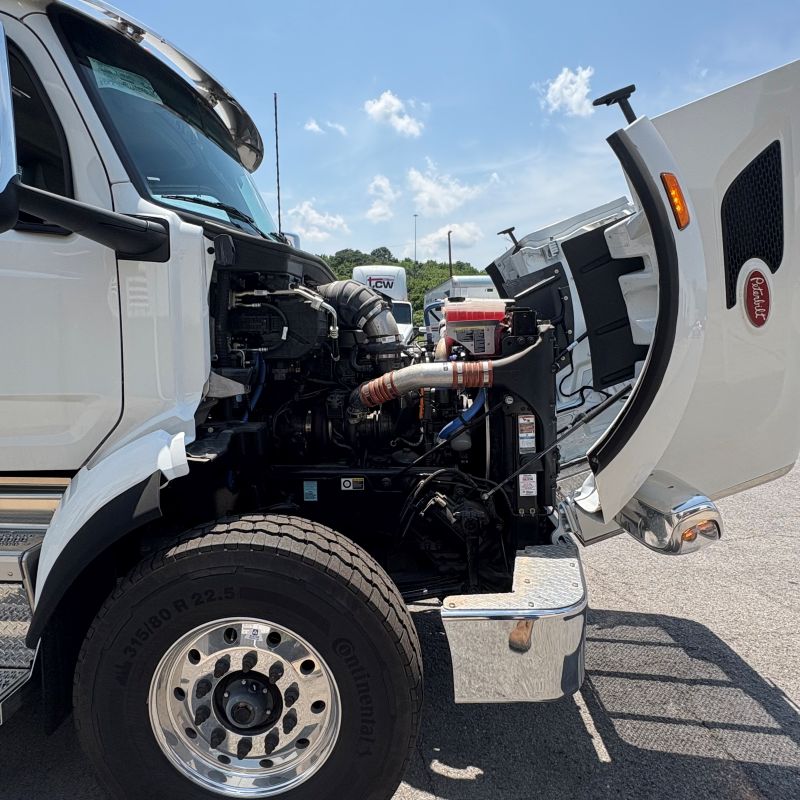

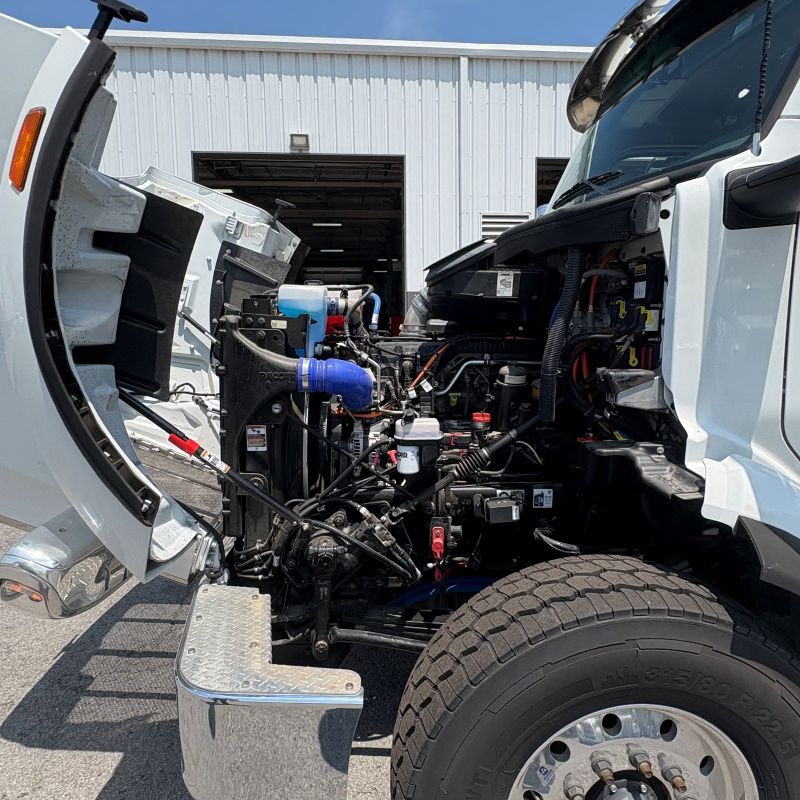

The PACCAR MX-13 is rated at 455 HP @ 1600 RPM, governed at 2200, with 1,650 lb-ft @ 900 RPM (2024 emissions). It has a compression brake, with engine brake controls on the right-hand column. Powertrain settings are optimized for performance in vocational applications and include torque-limiting powertrain protection and derate engine monitoring protection. Typical operating speed is set at 70 mph, and the accelerator pedal and cruise control maximum speeds are set at 68 mph. The engine idle shutdown timer is enabled with a 5-minute limit and an ambient temperature override. Remote-station PTO mode control is included, along with a 12-pin remote PTO/throttle provision in the engine bay.
The MX-13 is supported by a high-efficiency cooling system and a 2-speed fan clutch for frequent start/stops. It also has a PACCAR fuel/water separator with extended service interval, a PACCAR MX engine fuel cooler, a firewall-mounted air cleaner and a 110–120V immersion-type block heater. Electrical equipment includes a PACCAR 160 amp alternator, the PACCAR Premium starter and three PACCAR Premium 12V dual-purpose batteries totaling 2190 CCA. There’s also a low voltage disconnect system, a Kissling 300 amp battery disconnect switch with a dash warning light, and a battery jumper terminal under the hood on the left frame rail. Exhaust is a single right-hand side-of-cab system with a single-module DPF/SCR under the cab on the right. It has a 24-inch, 5-inch-diameter chrome standpipe with a curved tip and chrome elbows.
The transmission is an Allison 4500 RDS-P Gen 6 Rugged Duty Series in a 6-speed configuration with a TC-571 torque converter. It’s operated by a dash-mounted push button shifter. It’s set up with auto neutral when the parking brake is applied and Allison Neutral at Stop. Power reaches the rear through an RPL25 main driveline with two midship bearings and an RPL20 interaxle driveline.
Chassis & Axles
The frame uses 10-3/4" steel rails at 3/8" thickness with a full steel inner liner. The rails are zinc coated and anti-corrosion treated, with aluminum crossmembers and heavy-duty iron front spring brackets. The end of frame is square, with no crossmember, for a body-builder-installed crossmember. Engineering ratings are a 20,000 lb front GAWR, 23,000 lb on each drive axle and a 66,000 lb GVWR and GCW. The wheelbase is 254 inches, with a 185.8-inch cab-to-axle and 257.8-inch cab-to-end-of-frame.
Up front is a PACCAR FX-20 steer axle rated at 20,000 lbs with a 4-inch drop and wide track. Steering is TRW THP60 dual-gear power steering with a frame-mounted reservoir and cooler. The rear is a Meritor RT46-160 tandem rated at 46,000 lbs with a 4.30 ratio, tandem diff locks with speed interlock, a drive axle lube pump and synthetic lubricant in all axles. Brakes are Bendix air cam drums, 16.5x7 front and 16.5x8.6 rear, in a refuse service brake package. That package includes gusseted cam brackets on the steer and drive axles, heavy-duty steer axle cam bushings, rear camshaft reinforcement, upsized parking brakes and an SBM valve. The truck also has a 6S6M anti-lock braking system and PHP10 iron PreSet Plus hubs front and rear.
The air system has a WABCO 25.9 CFM compressor and a Bendix AD-HF EP air dryer with heater, coalescing filter and extended purge. It also has steel painted air tanks with pull cords and nylon chassis hose. All air system components are cleared from the outside of the frame on both sides back of cab. The chassis also includes a body lighting junction box with wiring at the end of frame and a dash winch brake switch with air and electrical at the end of frame.
The fuel tank is a polished 26-inch aluminum 80-gallon tank under the cab on the left, with a polished non-slip step and polished tank straps. The DEF tank is a small heavy-duty 14-gallon tank mounted left-hand back of cab, with a polished stainless steel cover.
Suspension
The front suspension uses 20,000 lb taper leaf springs with Tenneco shocks and greasable front spring pins. The rear suspension is a Hendrickson HMX EX 460 HaulMaax rated at 46,000 lbs with a 54-inch axle spacing and a 70K creep rating, fitted with shock absorbers. The cab rides on air suspension.
Cab & Interior

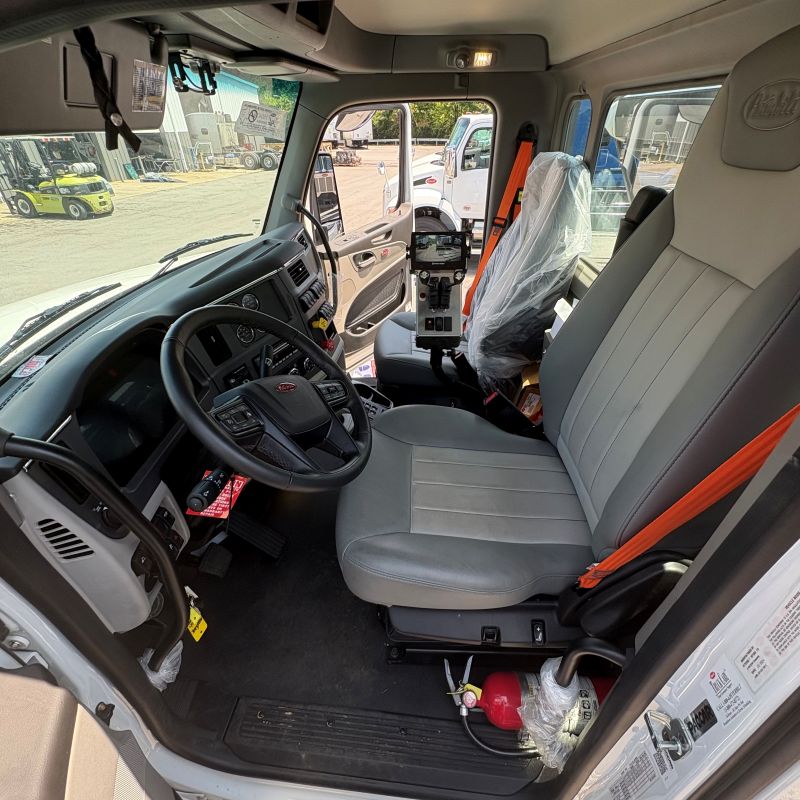

This day cab has a VOC 115 BBC aluminum cab and Metton hood in an SBFA configuration, with a stainless steel crown and grille and hood tilt assist. Inside is the Premier interior in Sterling Gray with a rubber floor and a thermal insulation package. Both seats are Peterbilt ST high-back vinyl air ride seats with armrests and orange seat belts. The adjustable tilt/telescope steering column has a premium leather-wrapped multifunction steering wheel with audio and cruise controls. Power door locks and power windows are standard, and climate control is a combination fresh air heater/air conditioner.
The main instrument panel is a 15-inch digital cluster display. Backlit 52mm bright-bezel gauges cover engine oil temperature, air pressure, fuel filter restriction and manifold pressure. Transmission oil temperature, brake application air pressure and engine percent torque are shown in the digital cluster. Four additional dash switches are wired behind the dash. The ConcertClass AM/FM/WB radio has a 3.5 aux input, Bluetooth phone and audio, a USB port and a two-speaker package, and it mutes when the transmission is in reverse. CB terminals and wiring are mounted under the header, with a low-mount antenna on the left cowl. SmartLINQ remote diagnostics is included.

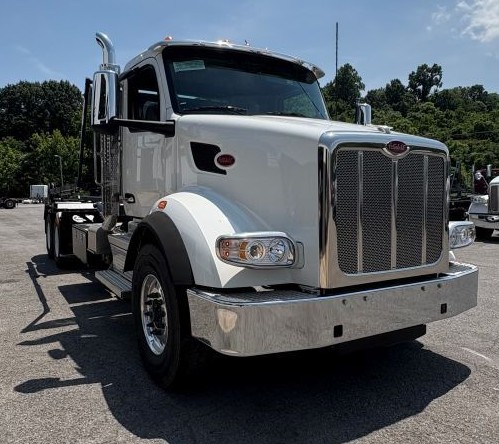

Exterior equipment includes a one-piece curved windshield and a fixed 3-piece rear cab window. It has a stainless steel outside sunvisor, motorized and heated Peterbilt aero mirrors in bright-finish housings, and a look-down mirror over the passenger door. Lighting is projector module headlights with fender-mounted turn signals, five aero LED marker lights and bracket-mounted LED stop/turn/tail/backup lights. The truck also has a chromed swept-back steel bumper with two tow points, a removable bugscreen, 4.5-inch rubber fender lips, a textured cab entry grab handle and an under-cab air horn. A fire extinguisher and triangle reflector kit are included. The cab, hood, fenders and roof are white, with a black frame.
Body & Equipment

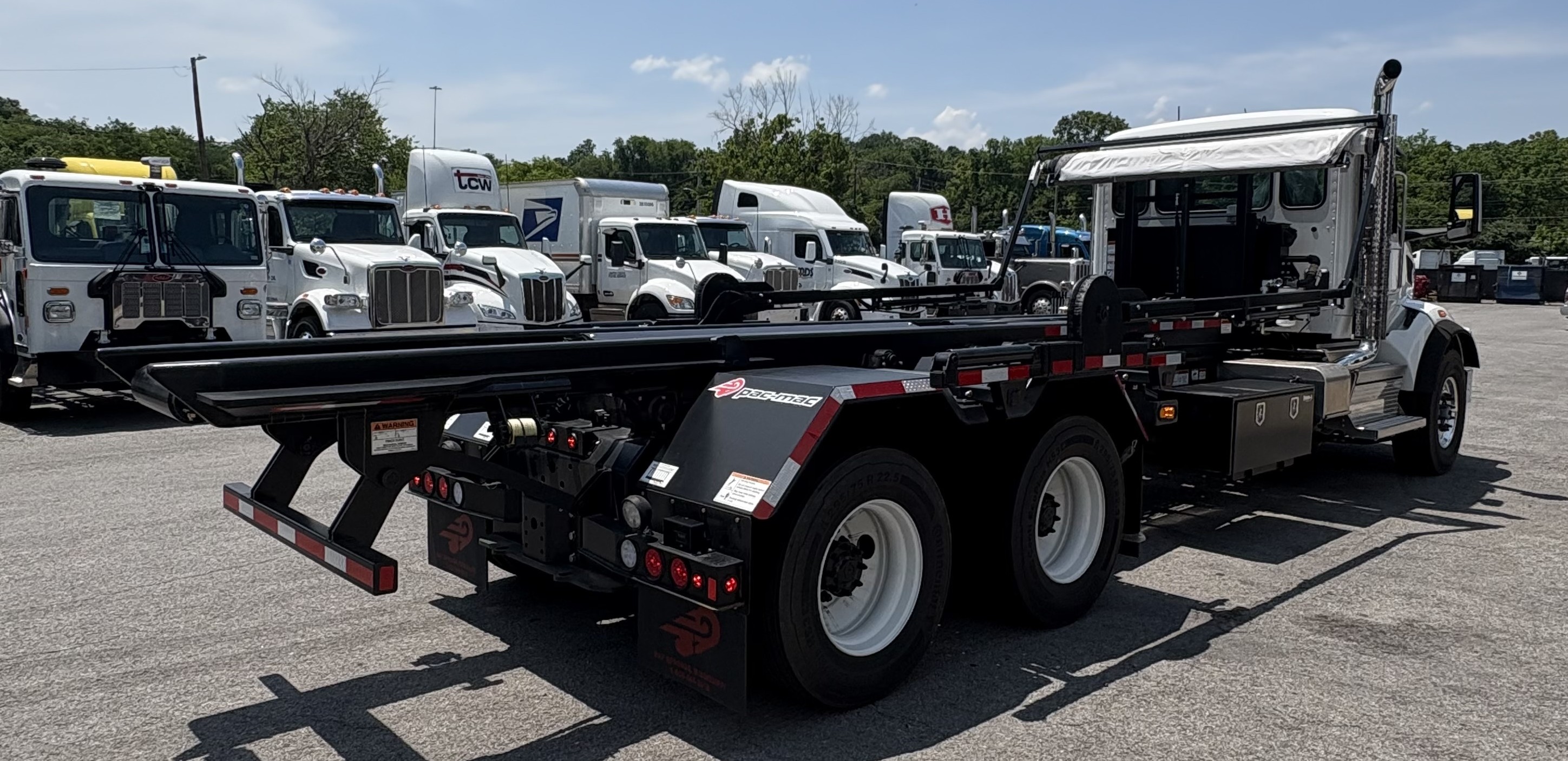

The PacMac 60K roll-off has a 49-degree tilt angle, an automatic roller lock and Hol-Mac reverse-mounted 6-inch lift cylinders made in the USA. Hoist controls are inside the cab on a swing-away control tower, and a sectional manual control valve is mounted outside the cab. The hydraulic tank sits back of cab for improved cooling. Steel line plumbing keeps rubber hoses to a minimum, wiring runs through a full-length steel conduit, and all lube fittings are accessible from ground level.
The body includes an integrated arm-type tarper and bolt-on replaceable steel fenders. Fold-down auxiliary front stops handle short containers. The auto forward-folding mechanical rear bumper is stowable for trailering, and there’s a pintle-ready hitch rear attachment point. Safety and visibility equipment includes dual safety props for maintenance, a dual-tone backup alarm and a hoist-up alarm with a signal light in the cab. It also has a rear camera, DOT-approved recessed LED lighting and reflectors, and two work lights mounted on the rear light boxes. The body also has a heavy-duty cable end and storage, front and rear mud flaps, and an 18" x 18" x 48" steel toolbox on the passenger side.
Tires & Wheels
Front tires are Continental 20-ply 315/80R22.5 HAU3 on Alcoa 89U637 22.5 x 9.00 high-polish aluminum wheels. The eight rear tires are Continental 16-ply 295/75R22.5 Conti EcoPlus HS3+ on 22.5 x 8.25 ACC-LTE Steel Armor steel wheels with PHP10-2 hand holes. Wheel guards are fitted between the tandem wheels.
Warranty & Protection
This new truck includes Peterbilt Class 8 Standard Coverage for 1 year/100,000 miles (160,000 km). PACCAR MX Standard Coverage on the engine runs 2 years/250,000 miles (400,000 km)/6,250 hours. EPA emissions engine base warranty coverage is 5 years/100,000 miles. A 5-year SmartLINQ remote diagnostics/OTA subscription for PACCAR MX engines is also included.
